4.1.2.17 Delegated application authority revoking request

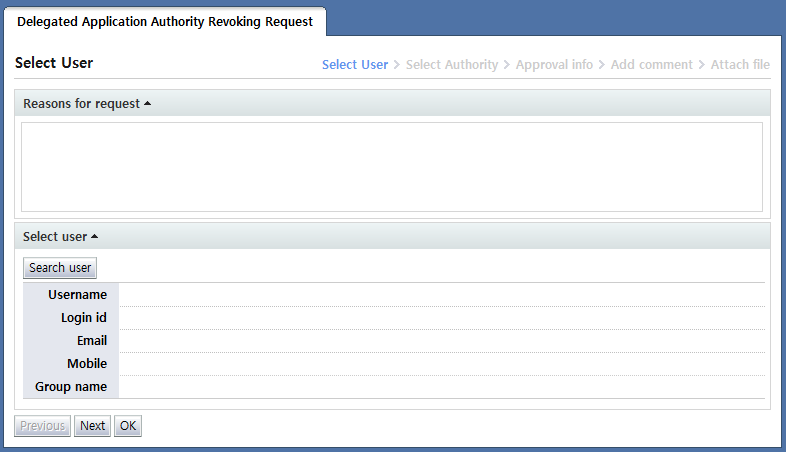

When Delegated Application Authority Revoking Request is selected in the request list, the following screen is brought up:

<Delegated application authority revoking request>
Delegated application authority revoking request is a form for making a proxy request for the revocation of application authorities (system, role, menu) owned by another user.
The Enter info screen for the delegated application authority revoking request is divided into two steps. In the first step, the user whose authorities will be revoked is selected. In the second step, the authorities to be revoked are selected from among the authorities owned by the selected user.
In "Select user" of the user selection step, the users to be requested are selected. To select a user, click the "Search user" button and select the users on the user popup screen that appears.
The following is the user selection popup screen:

<User selection popup>
When the user name or login ID of a user is clicked on the popup, the user is displayed in "Selected user" on the bottom of the popup.
Verify the user and click the "Select" button to select the user for whom the delegated request will be made. Only 1 user can be selected. Multiple user selection is not possible.

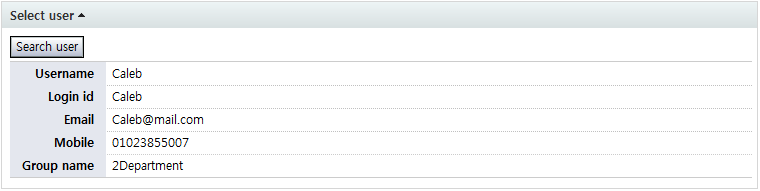

The selected user is displayed as in the following:

<Select user>
After selecting the user, click the "Next" button to select the user's authorities to be revoked.

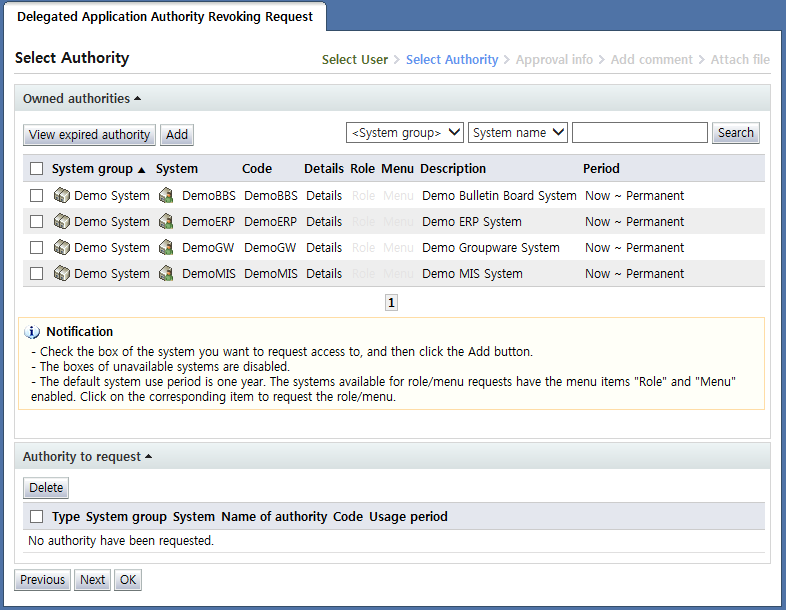

The following figure shows the screen brought up when the "Next" button is clicked:

<Select authorities whose revocation is requested>
In owned authorities, the authorities owned by the user selected in the previous step are displayed. In owned authorities, select the authorities to be revoked.
For the method of selecting an authority among owned authorities, refer to <Application owned authorities - Revoke/Extend> .
After entering request info, click the "Next" button and enter additional approval info.
